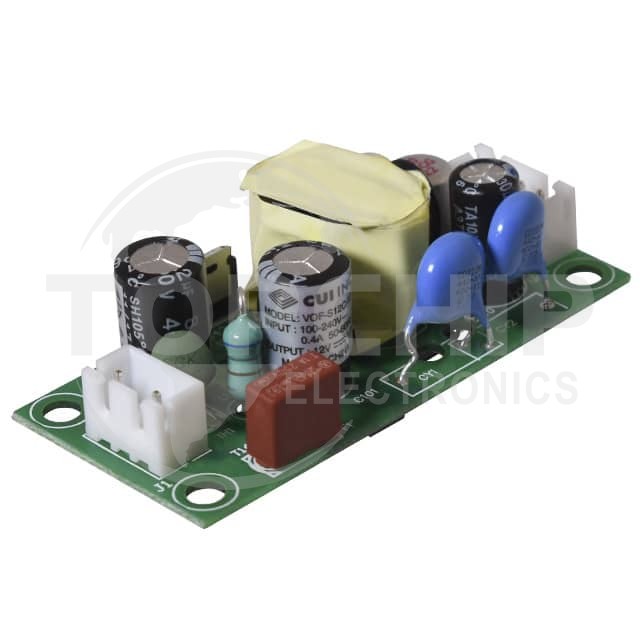

VOF-S12C-24 Specifications

• Series:VOF-S12C (12W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC, 120 ~ 370 VDC
• Voltage - Output 1:24V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):500mA
• Power (Watts):12W
• Applications:Household Appliances, ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:87%
• Operating Temperature:-40°C ~ 75°C (With Derating)
• Features:Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:2.15" L x 1.00" W x 0.55" H (54.6mm x 25.4mm x 14.0mm)
• Approval Agency:CB Scheme, EN, FCC, IEC, UL
• Standard Number:55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3; 61000-6-4; 61204-3; 62368-1
