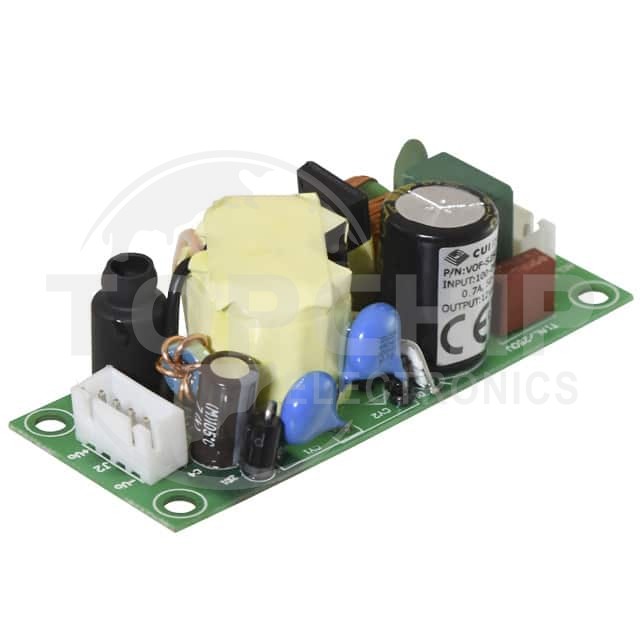

VOF-S25C-36 Specifications

• Series:VOF-S25C (25W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC, 120 ~ 370 VDC
• Voltage - Output 1:36V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):700mA
• Power (Watts):25W
• Applications:Household Appliances, ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:87%
• Operating Temperature:-30°C ~ 70°C (With Derating)
• Features:Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:2.78" L x 1.10" W x 0.77" H (70.5mm x 27.9mm x 19.5mm)
• Approval Agency:CB Scheme, EN, IEC, SIQ, TUV, UL
• Standard Number:55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61204-3; 62368-1
