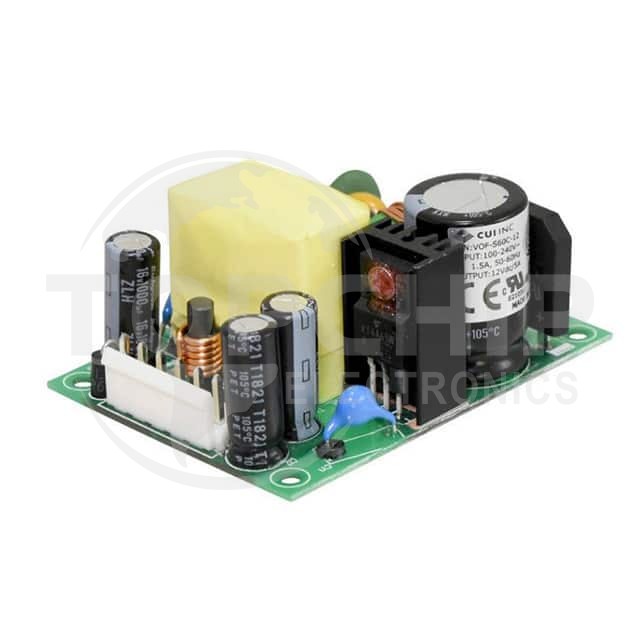

VOF-S60C-15 Specifications

• Series:VOF-S60C (60W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC, 120 ~ 370 VDC
• Voltage - Output 1:15V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):4A
• Power (Watts):60W
• Applications:ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:88%
• Operating Temperature:-30°C ~ 70°C (With Derating)
• Features:Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:2.70" L x 2.00" W x 1.13" H (68.6mm x 50.8mm x 28.6mm)
• Approval Agency:CB Scheme, EN, IEC, SIQ, TUV, UL
• Standard Number:55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3; 61000-6-4; 62368-1
