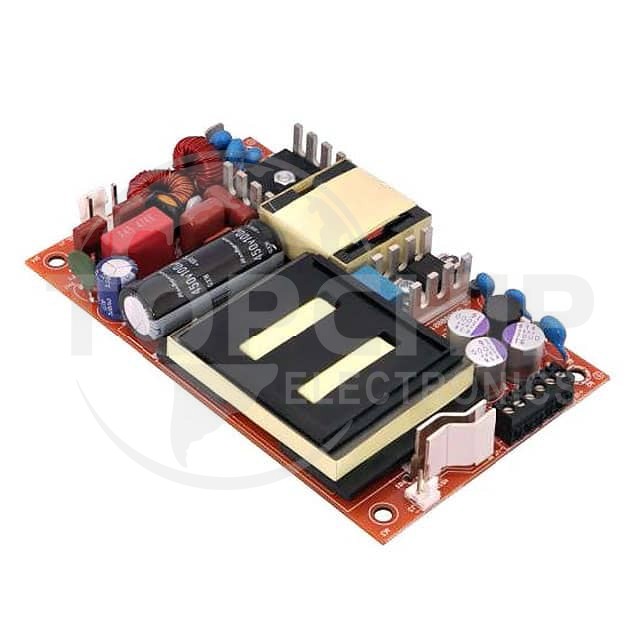

MBC275-1012L Specifications

• Series:MBC275 (275W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:85 ~ 264 VAC
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):13.33A
• Power (Watts):160W (275W Forced Air)
• Applications:Medical
• Voltage - Isolation:4 kV
• Efficiency:88%
• Operating Temperature:-40°C ~ 70°C (With Derating)
• Features:Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm)
• Approval Agency:CE
• Standard Number:-
