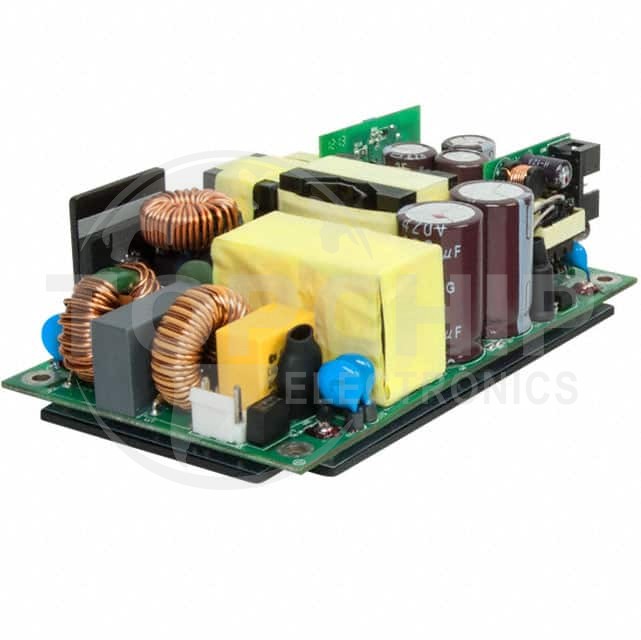

VBM-360-48 Specifications

• Series:VBM-360 (360W)
• Package:Box
• Part Status:Obsolete
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output 1:48V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):7.4A
• Power (Watts):360W
• Applications:ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:94%
• Operating Temperature:-20°C ~ 85°C (With Derating)
• Features:Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:5.00" L x 3.00" W x 1.60" H (127.0mm x 76.2mm x 40.6mm)
• Approval Agency:CB Scheme, EN, IEC, UL
• Standard Number:55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3; 61204-3
