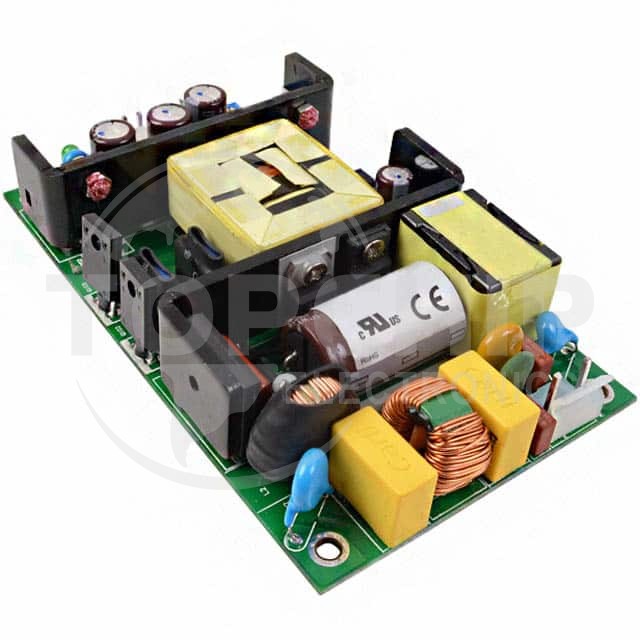

VMS-100-12 Specifications

• Series:VMS-100 (100W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):8.4A
• Power (Watts):100W
• Applications:Medical
• Voltage - Isolation:5.656 kV
• Efficiency:89%
• Operating Temperature:-25°C ~ 70°C (With Derating)
• Features:Adjustable Output, PFC, Remote Sense, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm)
• Approval Agency:CB Scheme, EN, FCC, IEC, TUV, UL
• Standard Number:55024; 55032 Class A; 60601-1; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3; 61000-6-4; 61204-3
