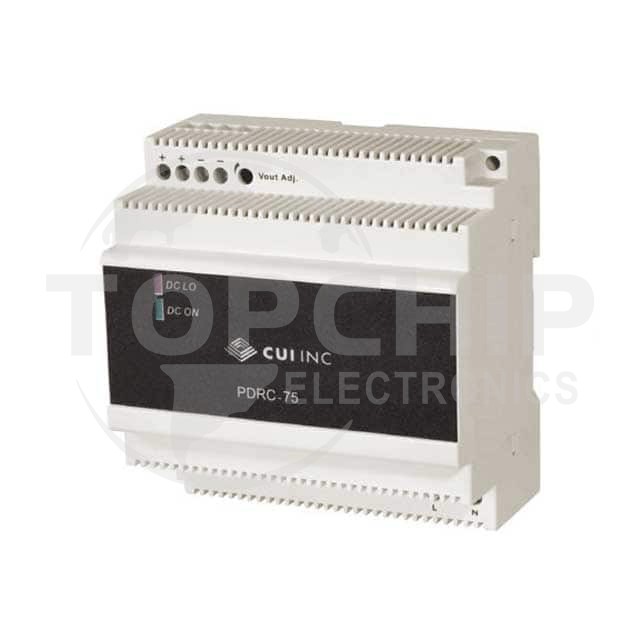

PDRC-75-24 Specifications

• Series:PDRC-75 (75W)
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC, 120 ~ 375 VDC
• Voltage - Output 1:24V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):4.2A
• Power (Watts):101W
• Applications:Industrial, ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:89%
• Operating Temperature:-40°C ~ 71°C (With Derating)
• Features:Adjustable Output, IP20, Universal Input
• Mounting Type:DIN Rail
• Size / Dimension:3.54" L x 2.24" W x 3.58" H (90.0mm x 57.0mm x 91.0mm)
• Approval Agency:EN, SIQ, TUV, UL
• Standard Number:1310; 8750; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1
