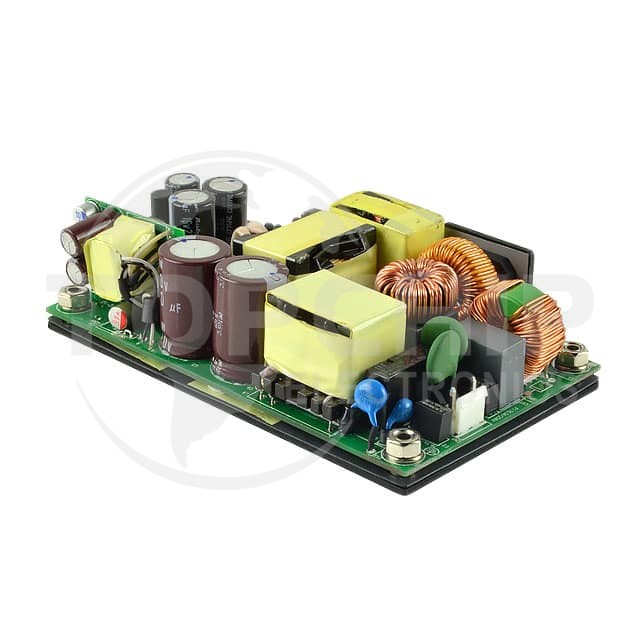

VMS-300A-24 Specifications

• Series:VMS-300A (300W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output 1:24V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):12.5A
• Power (Watts):200W (300W Forced Air)
• Applications:Medical
• Voltage - Isolation:4 kV
• Efficiency:93.5%
• Operating Temperature:-40°C ~ 80°C (With Derating)
• Features:Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm)
• Approval Agency:CB Scheme, EN, IEC, TUV, UL
• Standard Number:55011 Class B; 60601-1; 61000-3-2; 61000-3-3
