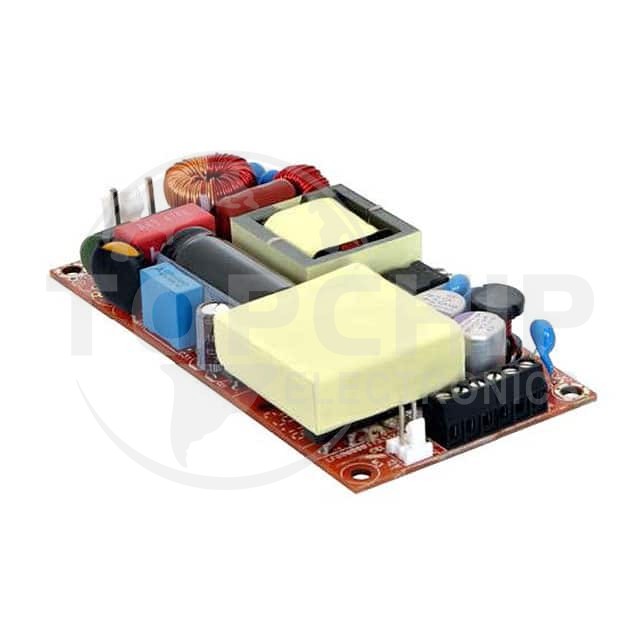

ABC180-1030L Specifications

• Series:ABC180 (180W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:80 ~ 264 VAC
• Voltage - Output 1:30V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):3.75A
• Power (Watts):120W (180W Forced Air)
• Applications:ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:90%
• Operating Temperature:-40°C ~ 70°C (With Derating)
• Features:Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm)
• Approval Agency:CE
• Standard Number:-
