3.0SMCJ14AQ-13

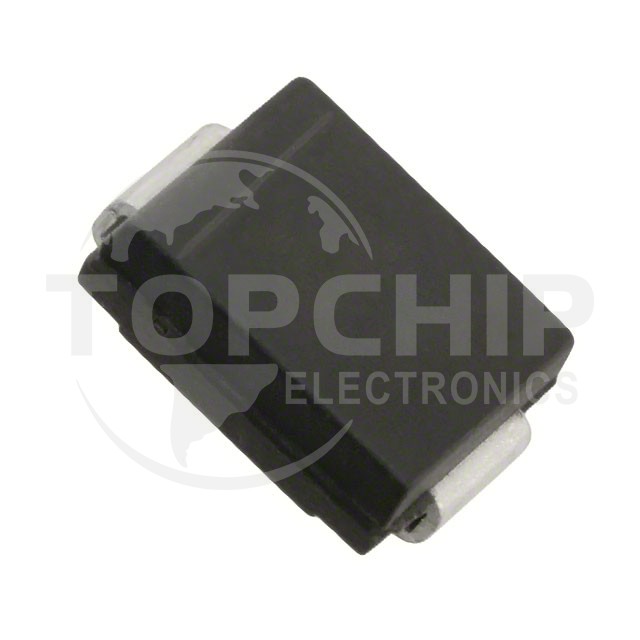

Image is for reference, please contact us to get the real picture

Manufacturer Part
3.0SMCJ14AQ-13
Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TRANSIENT VOLTAGE SUPPRESSOR SMC
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
0
Datasheets
-

3.0SMCJ14AQ-13 Specifications

  • Series:Automotive, AEC-Q101
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):14V
  • Voltage - Breakdown (Min):15.6V
  • Voltage - Clamping (Max) @ Ipp:23.2V
  • Current - Peak Pulse (10/1000µs):129.3A
  • Power - Peak Pulse:3000W (3kW)
  • Power Line Protection:Yes
  • Applications:Automotive
  • Capacitance @ Frequency:3500pF @ 1MHz
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AB, SMC
  • Supplier Device Package:SMC
