SMB15F22A

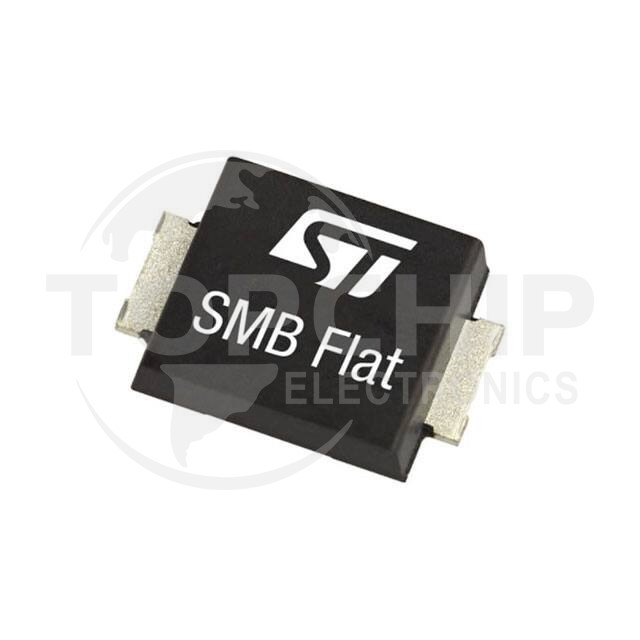

Image is for reference, please contact us to get the real picture

Manufacturer Part
SMB15F22A
Manufacturer
STMicroelectronics
Description
1500 W, 22 V TVS IN SMB FLAT
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
0
Datasheets
-

SMB15F22A Specifications

  • Series:SMB15F
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):22V (Max)
  • Voltage - Breakdown (Min):24.4V
  • Voltage - Clamping (Max) @ Ipp:48.3V
  • Current - Peak Pulse (10/1000µs):207A (8/20µs)
  • Power - Peak Pulse:1500W (1.5kW)
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-221AA, SMB Flat Leads
  • Supplier Device Package:SMBflat
