AHRL1100

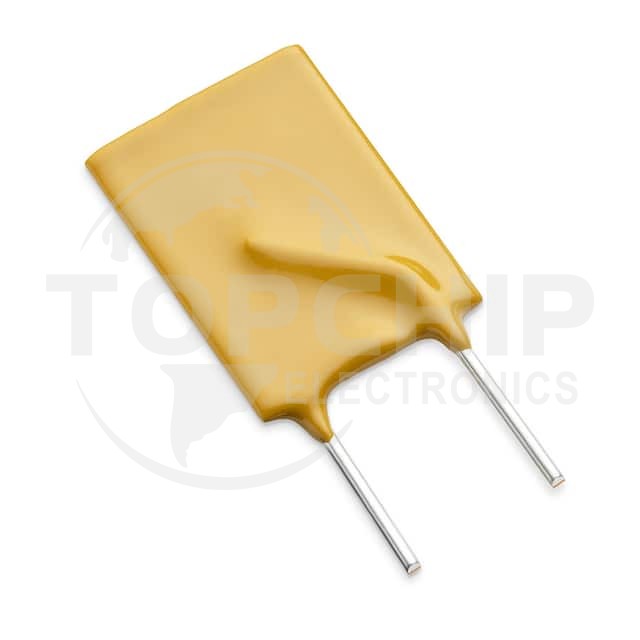

Image is for reference, please contact us to get the real picture

Manufacturer Part
AHRL1100
Manufacturer
Wickmann / Littelfuse
Description
PTC RESET FUSE 11A 16V RAD
Category
Circuit Protection Devices
Family
PTC Resettable Fuses
Series
-
In Stock
0
Datasheets
-

AHRL1100 Specifications

  • Series:PolySwitch®, AHRL
  • Package:Bulk
  • Part Status:Active
  • Type:Polymeric
  • Voltage - Max:16V
  • Current - Max:100 A
  • Current - Hold (Ih) (Max):11 A
  • Current - Trip (It):22 A
  • Time to Trip:11.2 s
  • Resistance - Initial (Ri) (Min):3.8 mOhms
  • Resistance - Post Trip (R1) (Max):6.3 mOhms
  • Resistance - 25°C (Typ):-
  • Operating Temperature:-40°C ~ 125°C
  • Ratings:AEC-Q200
  • Mounting Type:Through Hole
  • Package / Case:Radial, Disc
  • Size / Dimension:0.685" L x 0.142" W (17.40mm x 3.60mm)
  • Height - Seated (Max):0.882" (22.40mm)
  • Thickness (Max):-
  • Lead Spacing:0.400" (10.15mm)
