PA1005.040QNL

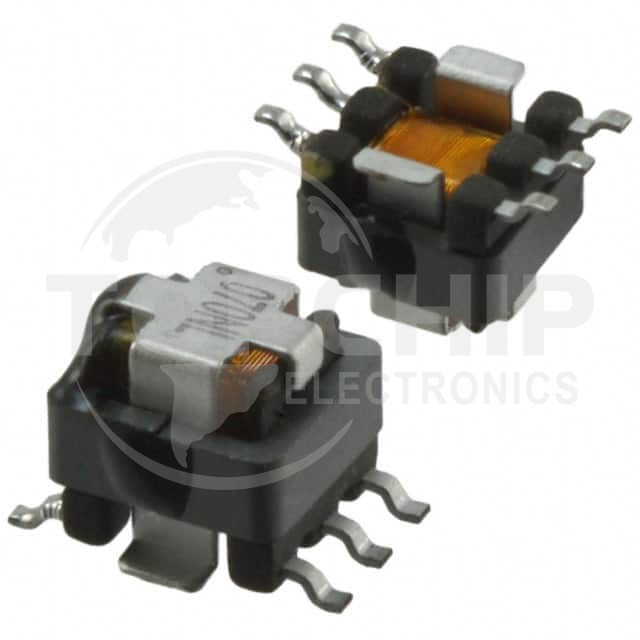

Image is for reference, please contact us to get the real picture

Manufacturer Part
PA1005.040QNL
Manufacturer
PulseLarsen Antenna
Description
CURR SENSE XFMR 1:40 20A SMD
Category
Transformers
Family
Current Sense Transformers
Series
-
In Stock
0
Datasheets
-

PA1005.040QNL Specifications

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Frequency Range:50kHz ~ 1MHz
  • Type:Invasive
  • Current Rating (Amps):-
  • Inductance:0.75mOhm Primary, 1.14Ohm Secondary
  • ET (Volt-Time):AEC-Q200
  • Turns Ratio - Primary:Secondary:Surface Mount
  • Current Ratio:0.284" L x 0.330" W (7.21mm x 8.38mm)
  • DC Resistance (DCR):0.217" (5.50mm)
  • Ratings:Gull Wing
