520N15DA13M0000

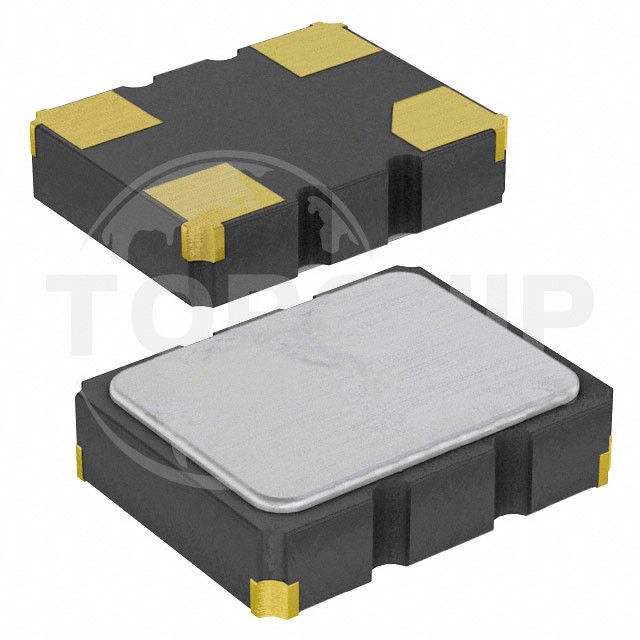

Image is for reference, please contact us to get the real picture

Manufacturer Part
520N15DA13M0000
Manufacturer
CTS Corporation
Description
XTAL OSC VCTCXO 13.0000MHZ SNWV
Category
Crystals, Oscillators, Resonators
Family
Oscillators
Series
-
In Stock
0
Datasheets
-

520N15DA13M0000 Specifications

  • Series:520
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Base Resonator:Crystal
  • Type:VCTCXO
  • Frequency:13 MHz
  • Function:-
  • Output:Clipped Sine Wave
  • Voltage - Supply:2.5V
  • Frequency Stability:±1.5ppm
  • Absolute Pull Range (APR):-
  • Operating Temperature:-30°C ~ 85°C
  • Spread Spectrum Bandwidth:-
  • Current - Supply (Max):2mA
  • Ratings:-
  • Mounting Type:Surface Mount
  • Package / Case:4-SMD, No Lead
  • Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height - Seated (Max):0.031" (0.80mm)
