JW1SN-B-DC5V

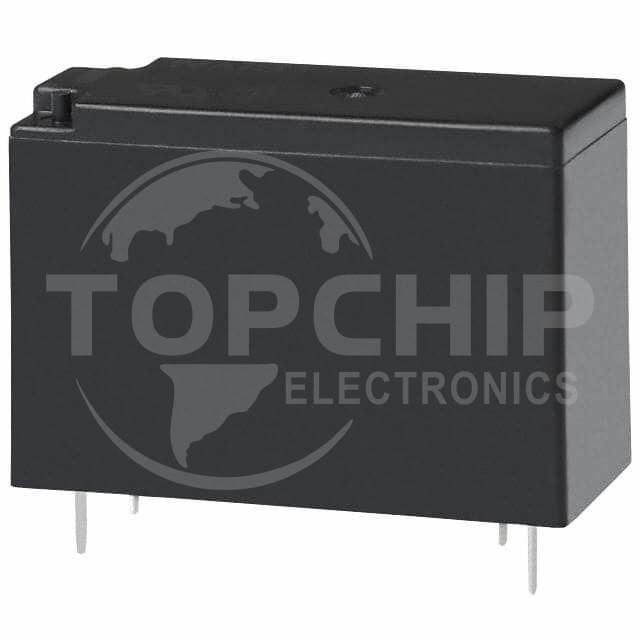

Image is for reference, please contact us to get the real picture

Manufacturer Part
JW1SN-B-DC5V
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 5A 5V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
0
Datasheets
-

JW1SN-B-DC5V Specifications

  • Series:JW
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:5VDC
  • Contact Form:SPDT (1 Form C)
  • Contact Rating (Current):5 A
  • Switching Voltage:250VAC, 30VDC - Max
  • Coil Current:106 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Fully
  • Coil Insulation:Class B
  • Must Operate Voltage:3.5 VDC
  • Must Release Voltage:0.5 VDC
  • Operate Time:15 ms
  • Release Time:5 ms
  • Operating Temperature:-40°C ~ 60°C
  • Contact Material:Silver Nickel (AgNi)
  • Relay Type:General Purpose
