AGQ21TS12Z

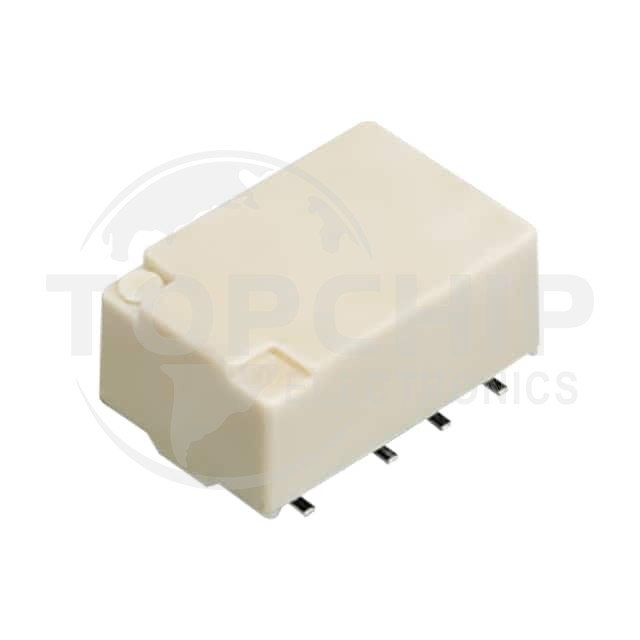

Image is for reference, please contact us to get the real picture

Manufacturer Part
AGQ21TS12Z
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 2A 12VDC
Category
Relays
Family
Signal Relays, Up to 2 Amps
Series
-
In Stock
0
Datasheets
-

AGQ21TS12Z Specifications

  • Series:AGQ TH
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Mounting Type:Surface Mount
  • Coil Voltage:12VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):2 A
  • Switching Voltage:125VAC, 110VDC - Max
  • Coil Current:8.3 mA
  • Coil Type:Latching, Single Coil
  • Features:-
  • Termination Style:Gull Wing
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:9 VDC
  • Must Release Voltage:-
  • Operate Time:4 ms
  • Release Time:4 ms
  • Operating Temperature:-40°C ~ 85°C
  • Contact Material:Silver Nickel (AgNi), Gold (Au)
  • Relay Type:General Purpose
