JMACT-26XP

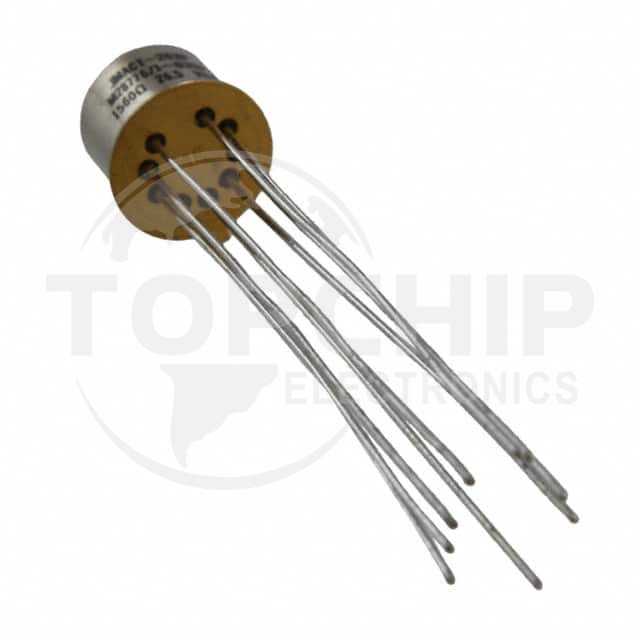

Image is for reference, please contact us to get the real picture

Manufacturer Part
JMACT-26XP
Manufacturer
TE Connectivity Aerospace Defense and Marine
Description
RELAY GEN PURPOS DPDT 1A 26.5VDC
Category
Relays
Family
Signal Relays, Up to 2 Amps
Series
-
In Stock
0
Datasheets
-

JMACT-26XP Specifications

  • Series:Military, MIL-R-28776/1, MA, CII
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:26.5VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):1 A
  • Switching Voltage:28VDC - Nom
  • Coil Current:-
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Hermetically
  • Coil Insulation:-
  • Must Operate Voltage:14.2 VDC
  • Must Release Voltage:1.37 VDC
  • Operate Time:2 ms
  • Release Time:7.5 ms
  • Operating Temperature:-65°C ~ 125°C
  • Contact Material:-
  • Relay Type:General Purpose
