AGQ20TS1H

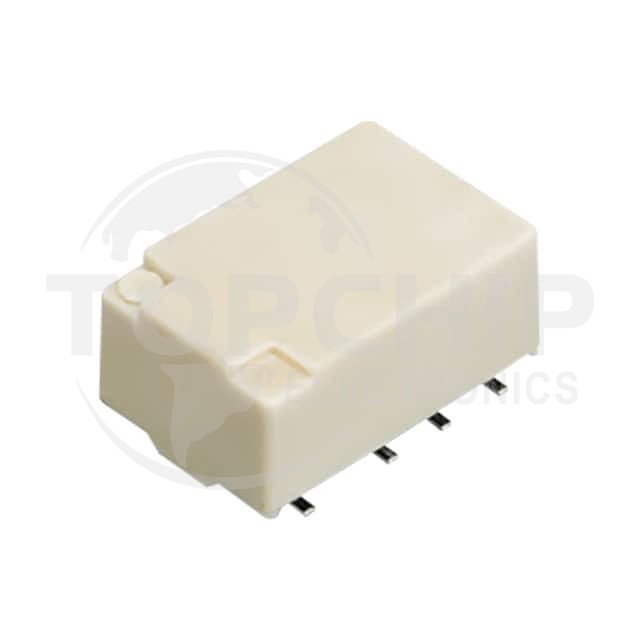

Image is for reference, please contact us to get the real picture

Manufacturer Part
AGQ20TS1H
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 2A 1.5VDC
Category
Relays
Family
Signal Relays, Up to 2 Amps
Series
-
In Stock
0
Datasheets
-

AGQ20TS1H Specifications

  • Series:AGQ TH
  • Package:Tube
  • Part Status:Active
  • Mounting Type:Surface Mount
  • Coil Voltage:1.5VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):2 A
  • Switching Voltage:125VAC, 110VDC - Max
  • Coil Current:93.8 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:Gull Wing
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:1.13 VDC
  • Must Release Voltage:0.15 VDC
  • Operate Time:4 ms
  • Release Time:4 ms
  • Operating Temperature:-40°C ~ 85°C
  • Contact Material:Silver Nickel (AgNi), Gold (Au)
  • Relay Type:General Purpose
