76PSB12ST

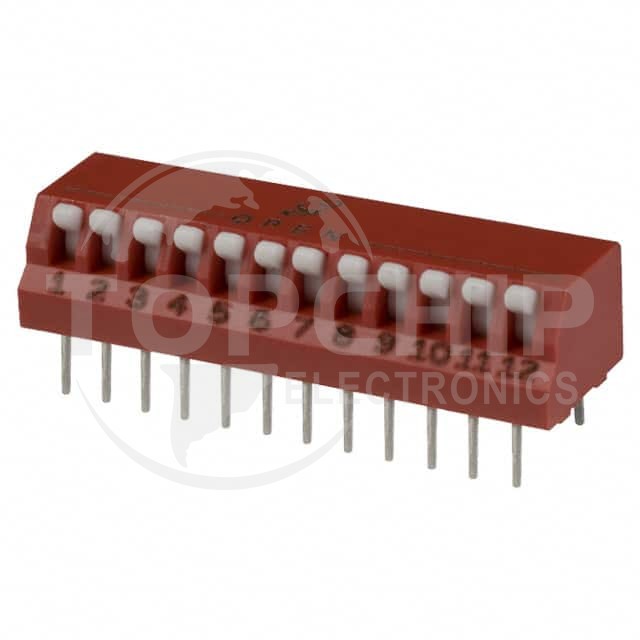

Image is for reference, please contact us to get the real picture

Manufacturer Part
76PSB12ST
Manufacturer
Grayhill, Inc.
Description
SWITCH PIANO DIP SPST 150MA 30V
Category
Switches
Family
DIP Switches
Series
-
In Stock
0
Datasheets
-

76PSB12ST Specifications

  • Series:76
  • Package:Tube
  • Part Status:Active
  • Circuit:SPST
  • Number of Positions:12
  • Current Rating (Amps):150mA
  • Voltage Rating:30VDC
  • Actuator Type:Piano
  • Actuator Level:Raised
  • Contact Material:Copper Alloy
  • Contact Finish:Gold
  • Height Above Board:0.301" (7.65mm)
  • Mounting Type:Through Hole, Right Angle
  • Termination Style:PC Pin
  • Pitch:0.100" (2.54mm), Full
  • Washable:Yes
  • Features:Tape Seal
  • Operating Temperature:-40°C ~ 85°C
