SG-D1-2B22

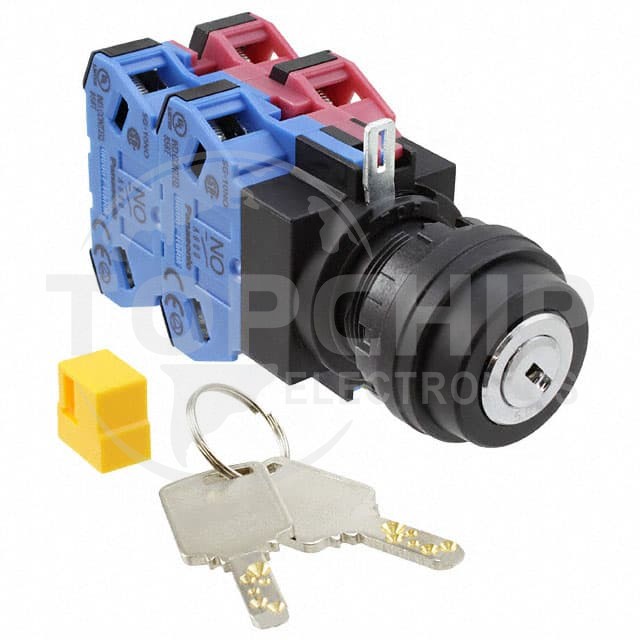

Image is for reference, please contact us to get the real picture

Manufacturer Part
SG-D1-2B22
Manufacturer
Panasonic
Description
SWITCH KEYLCK 2POS 4PST 10A 110V
Category
Switches
Family
Keylock Switches
Series
-
In Stock
0
Datasheets
-

SG-D1-2B22 Specifications

  • Series:SG-D1
  • Package:Bulk
  • Part Status:Obsolete
  • Circuit:4PST-2NO/2NC
  • Number of Positions:2
  • Switch Function:On-Off, Off-On
  • Contact Timing:Not Specified
  • Current Rating (Amps):10A (AC), 8A (DC)
  • Voltage Rating - AC:110 V
  • Voltage Rating - DC:24 V
  • Actuator Type:Flat Key
  • Key Removable Positions:1 only
  • Angle of Throw:90°
  • Contact Material:-
  • Contact Finish:-
  • Mounting Type:Panel Mount
  • Termination Style:Screw Terminal
  • Panel Cutout Dimensions:Circular - 22.30mm Dia
  • Features:IP65
  • Operating Temperature:-25°C ~ 60°C
