E3G0603N-2

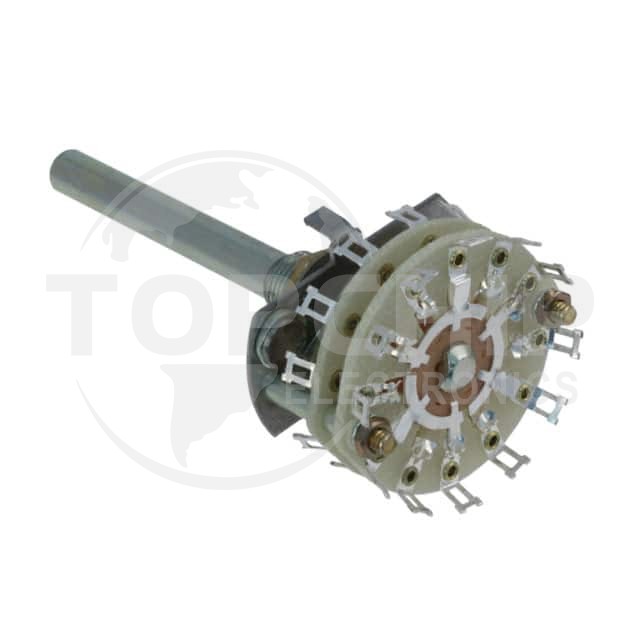

Image is for reference, please contact us to get the real picture

Manufacturer Part
E3G0603N-2
Manufacturer
Electroswitch
Description
SWITCH ROTARY 3POS 500MA 115V
Category
Switches
Family
Rotary Switches
Series
-
In Stock
0
Datasheets
-

E3G0603N-2 Specifications

  • Series:E3
  • Package:Bulk
  • Part Status:Active
  • Number of Positions:3
  • Index Stops:Fixed
  • Number of Decks:2
  • Number of Poles per Deck:3
  • Circuit per Deck:3P3T
  • Contact Timing:Non-Shorting (BBM)
  • Current Rating (Amps):500mA (AC), 1.5A (DC)
  • Voltage Rating - AC:115 V
  • Voltage Rating - DC:28 V
  • Actuator Type:Round (6.35mm Dia)
  • Actuator Length:47.63mm
  • Angle of Throw:30°
  • Contact Material:Brass
  • Contact Finish:Silver
  • Mounting Type:Panel Mount
  • Termination Style:Solder Lug
  • Features:Spring Return
  • Depth Behind Panel:11.96mm
