12146AD2G1V

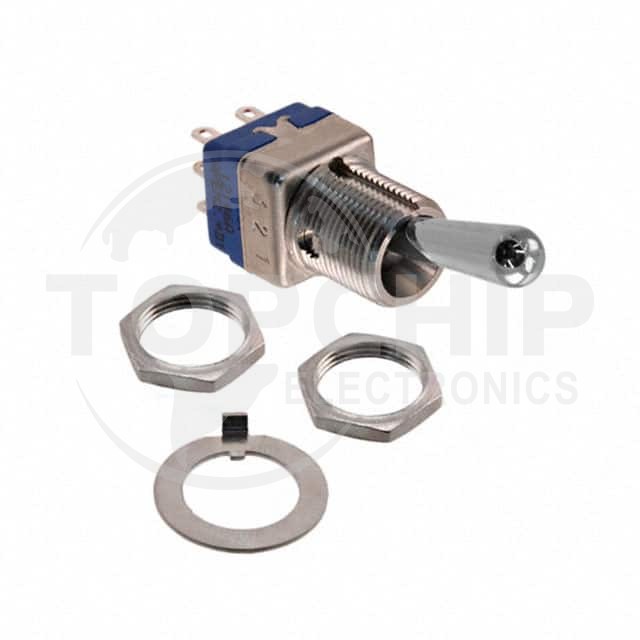

Image is for reference, please contact us to get the real picture

Manufacturer Part
12146AD2G1V
Manufacturer
APEM Inc.
Description
SWITCH TOGGLE DPDT 4A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
0
Datasheets
-

12146AD2G1V Specifications

  • Series:12000
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:DPDT
  • Switch Function:On-On
  • Current Rating (Amps):4A (AC/DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Locking Lever
  • Actuator Length:19.40mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Solder Lug
  • Panel Cutout Dimensions:Circular - 12.50mm Dia
  • Bushing Thread:15/32-32
  • Ingress Protection:-
  • Features:Epoxy Sealed Terminals
  • Operating Temperature:-40°C ~ 85°C
