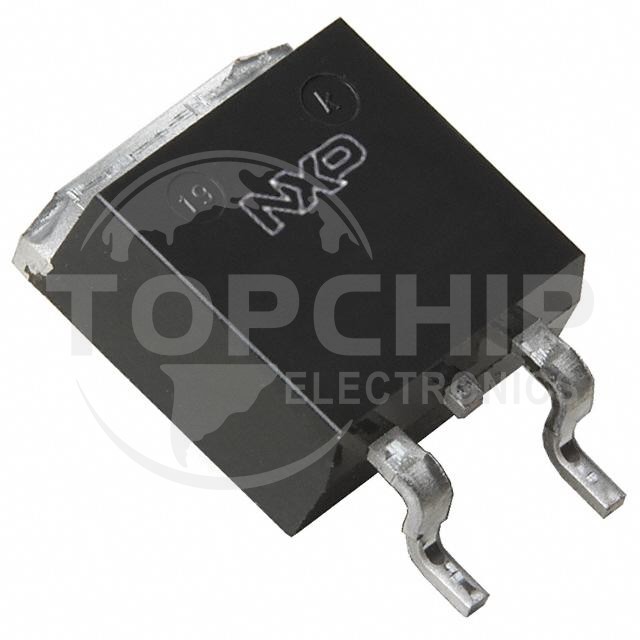

BUK9616-75B,118 Specifications

• Series:Automotive, AEC-Q101, TrenchMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):75 V
• Current - Continuous Drain (Id) @ 25°C:67A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):5V, 10V
• Rds On (Max) @ Id, Vgs:14mOhm @ 25A, 10V
• Vgs(th) (Max) @ Id:2V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:35 nC @ 5 V
• Vgs (Max):±15V
• Input Capacitance (Ciss) (Max) @ Vds:4034 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):157W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:D2PAK
• Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
