PMZB290UNE2YL Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:1.2A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
• Rds On (Max) @ Id, Vgs:320mOhm @ 1.2A, 4.5V
• Vgs(th) (Max) @ Id:950mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:1.4 nC @ 4.5 V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:46 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):350mW (Ta), 5.43W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

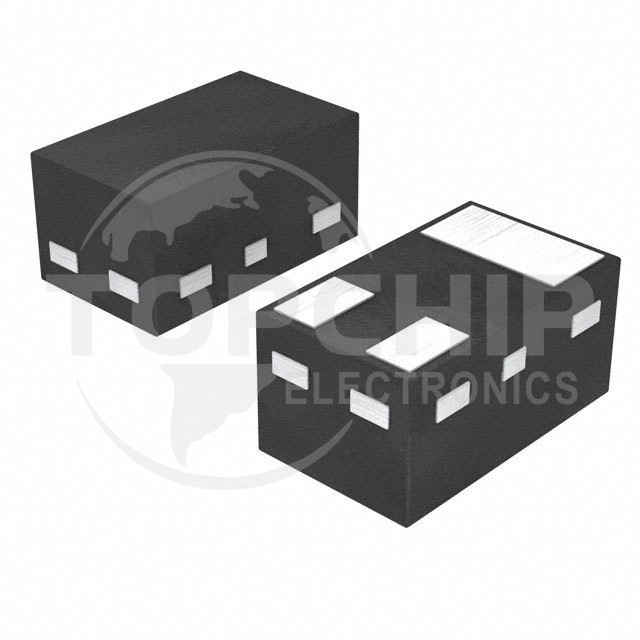

• Supplier Device Package:DFN1006B-3
• Package / Case:3-XFDFN
