PMPB12UNEAX Specifications

• Series:Automotive, AEC-Q101, TrenchMOS™
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:7.9A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
• Rds On (Max) @ Id, Vgs:18mOhm @ 7.9A, 4.5V
• Vgs(th) (Max) @ Id:0.9V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:17 nC @ 10 V
• Vgs (Max):±12V
• Input Capacitance (Ciss) (Max) @ Vds:1.22 nF @ 10 V
• FET Feature:-
• Power Dissipation (Max):1.6W (Ta), 12.5W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

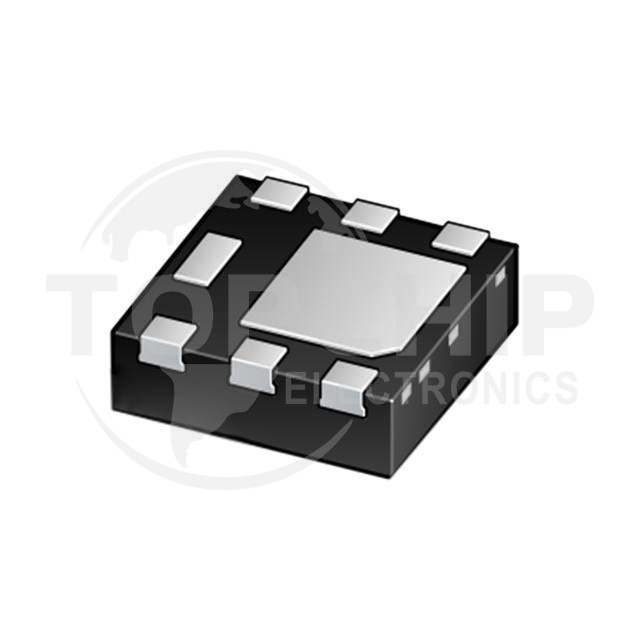

• Supplier Device Package:DFN2020MD-6
• Package / Case:6-UDFN Exposed Pad
