BUK6D23-40EX Specifications

• Series:Automotive, AEC-Q101, TrenchMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:8A (Ta), 19A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:23mOhm @ 8A, 10V
• Vgs(th) (Max) @ Id:2.7V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:19 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:582 pF @ 20 V
• FET Feature:-
• Power Dissipation (Max):2.3W (Ta), 15W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

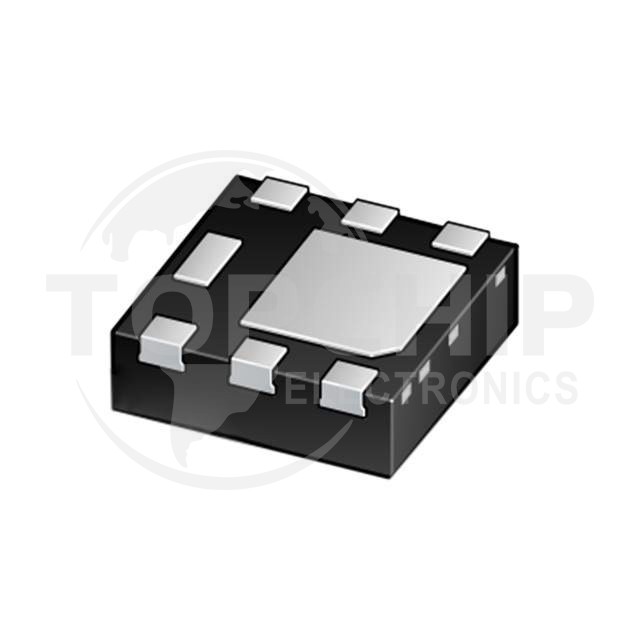

• Supplier Device Package:DFN2020MD-6
• Package / Case:6-UDFN Exposed Pad
