AONR21321 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:24A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:16.5mOhm @ 12A, 10V
• Vgs(th) (Max) @ Id:2.3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:34 nC @ 10 V
• Vgs (Max):±25V
• Input Capacitance (Ciss) (Max) @ Vds:1180 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):4.1W (Ta), 24W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

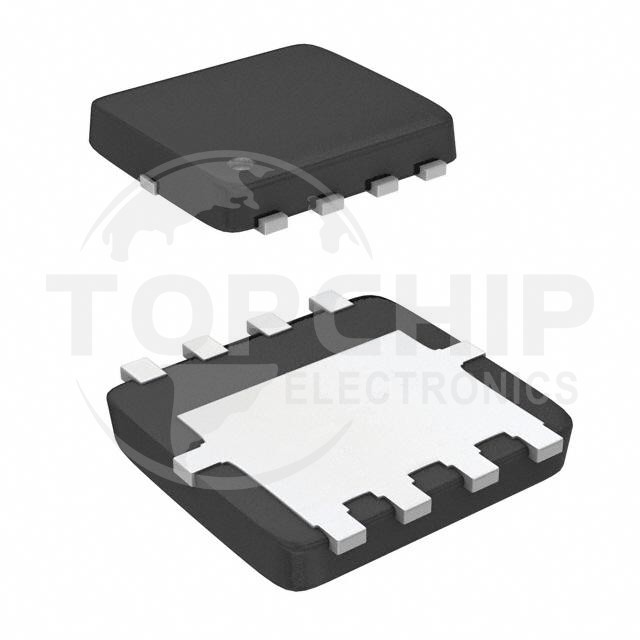

• Supplier Device Package:8-DFN-EP (3x3)
• Package / Case:8-PowerVDFN
