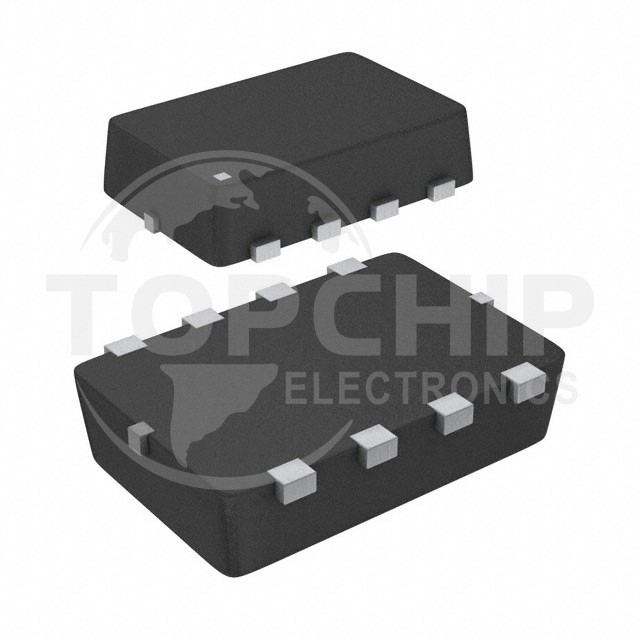

AON4407 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):12 V
• Current - Continuous Drain (Id) @ 25°C:9A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
• Rds On (Max) @ Id, Vgs:20mOhm @ 9A, 4.5V
• Vgs(th) (Max) @ Id:850mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:23 nC @ 4.5 V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:2100 pF @ 6 V
• FET Feature:-
• Power Dissipation (Max):2.5W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:8-DFN (3x2)
• Package / Case:8-SMD, Flat Lead
