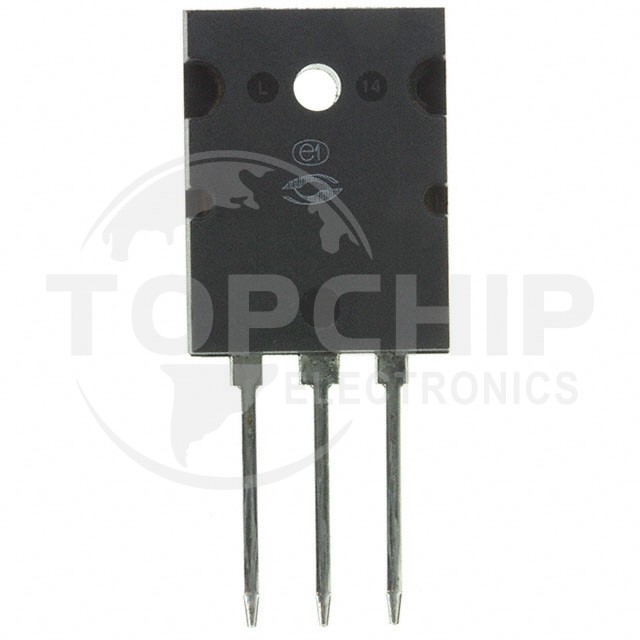

APT60M75L2FLLG Specifications

• Series:POWER MOS 7®
• Package:Tube
• Part Status:Not For New Designs
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):600 V
• Current - Continuous Drain (Id) @ 25°C:73A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:75mOhm @ 36.5A, 10V
• Vgs(th) (Max) @ Id:5V @ 5mA
• Gate Charge (Qg) (Max) @ Vgs:195 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:8930 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):893W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:264 MAX™ [L2]
• Package / Case:TO-264-3, TO-264AA
