BUK9M24-60EX Specifications

• Series:Automotive, AEC-Q101, TrenchMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:32A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):5V
• Rds On (Max) @ Id, Vgs:21mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:2.1V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:12.4 nC @ 5 V
• Vgs (Max):±10V
• Input Capacitance (Ciss) (Max) @ Vds:1469 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):55W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

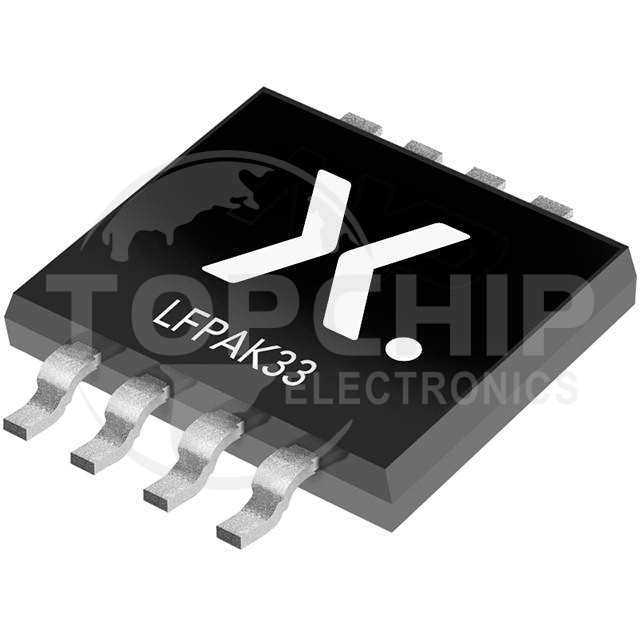

• Supplier Device Package:LFPAK33
• Package / Case:SOT-1210, 8-LFPAK33
