APT24M80S Specifications

• Series:POWER MOS 8™
• Package:Bulk
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):800 V
• Current - Continuous Drain (Id) @ 25°C:25A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:390mOhm @ 12A, 10V
• Vgs(th) (Max) @ Id:5V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:150 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:4595 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):625W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

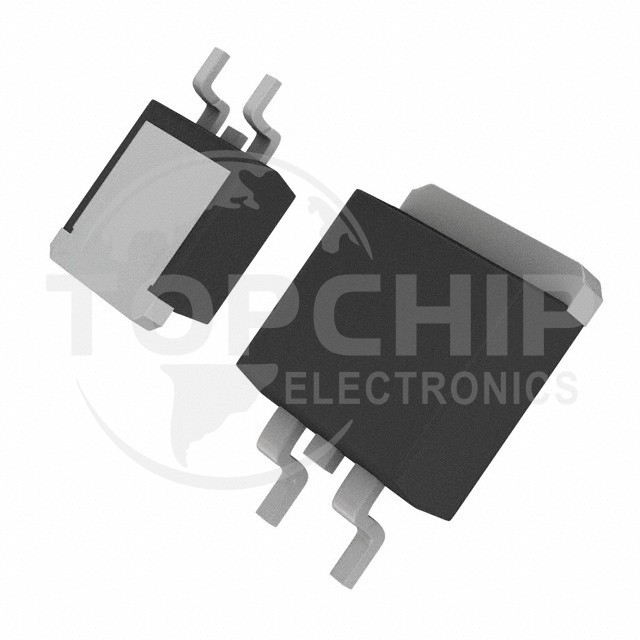

• Supplier Device Package:D3Pak
• Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
