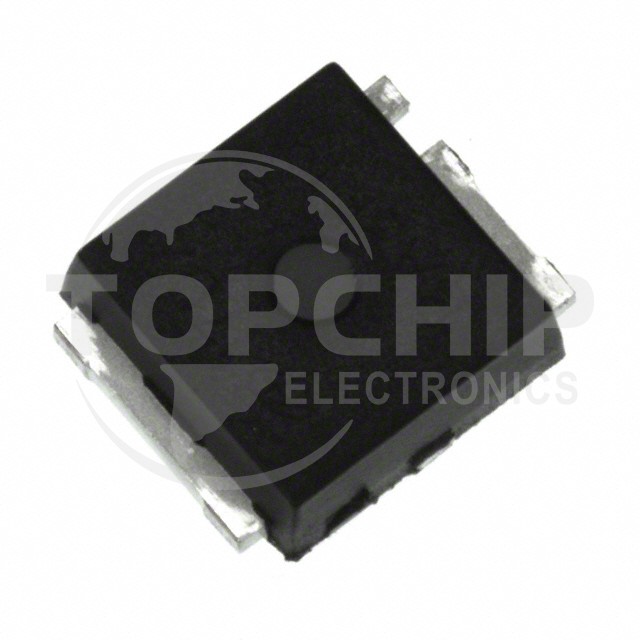

AOL1482 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:4.5A (Ta), 28A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:37mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:2.7V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:44 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2000 pF @ 50 V
• FET Feature:-
• Power Dissipation (Max):1.9W (Ta), 75W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:UltraSO-8™
• Package / Case:3-PowerSMD, Flat Leads
