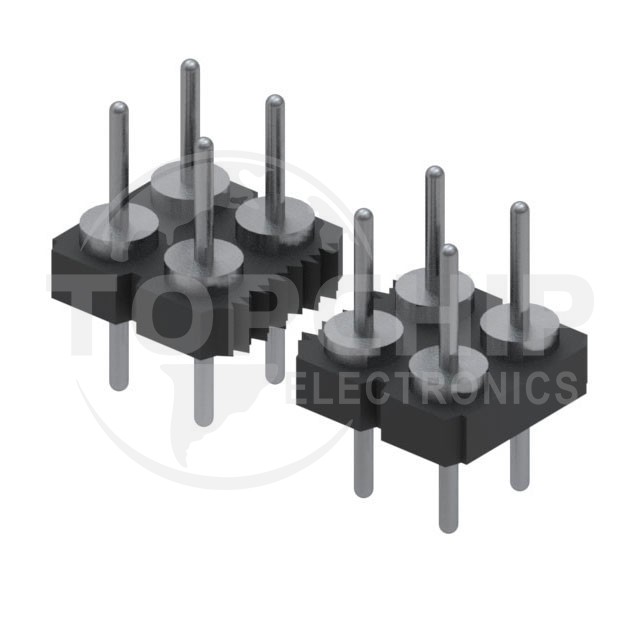

435-90-214-00-160000 Specifications

• Series:435
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:14
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.125" (3.18mm)
• Contact Length - Post:0.104" (2.64mm)
• Overall Contact Length:0.299" (7.60mm)
• Insulation Height:0.050" (1.27mm)
• Contact Shape:Circular
• Contact Finish - Mating:Tin-Lead
• Contact Finish Thickness - Mating:200.0µin (5.08µm)
• Contact Finish - Post:Tin-Lead
• Contact Material:Brass Alloy
• Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:-
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
