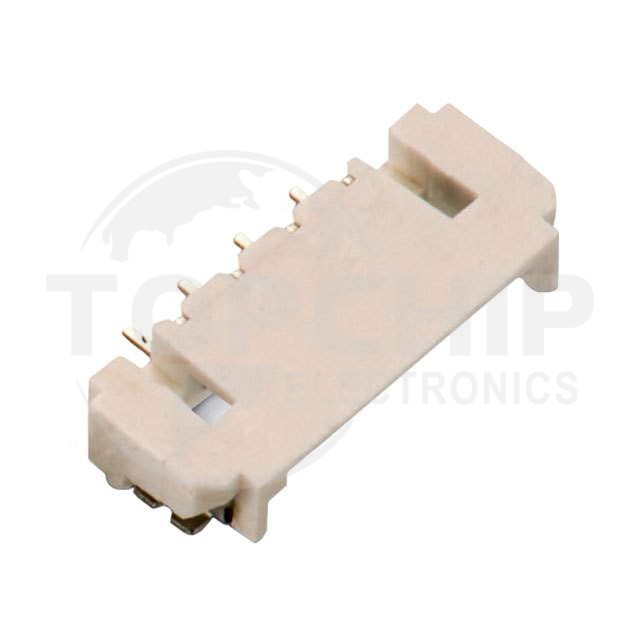

695405150122 Specifications

• Series:WR-LECO
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Blade
• Pitch - Mating:0.059" (1.50mm)
• Number of Positions:5
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Shrouded - 3 Wall
• Mounting Type:Surface Mount, Right Angle
• Termination:Solder
• Fastening Type:Detent Lock
• Contact Length - Mating:-
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.073" (1.85mm)
• Contact Shape:Rectangular
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:120.0µin (3.05µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Polyamide (PA6T), Nylon 6T
• Features:Board Guide, Solder Retention
• Operating Temperature:-25°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:White
• Current Rating (Amps):1A
• Voltage Rating:150VAC
