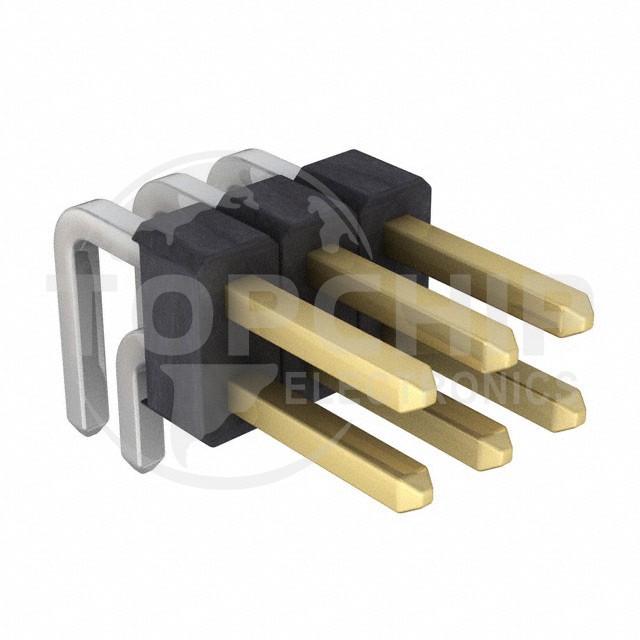

892-18-006-20-001101 Specifications

• Series:892
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:6
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.236" (6.00mm)
• Contact Length - Post:0.118" (3.00mm)
• Overall Contact Length:-
• Insulation Height:0.200" (5.08mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:10.0µin (0.25µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyamide (PA), Nylon, Glass Filled
• Features:-
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):3A
• Voltage Rating:150VDC
