860-80-033-40-001101 In Stock | Preci-Dip 860-80-033-40-001101 |www.topchipelec.com

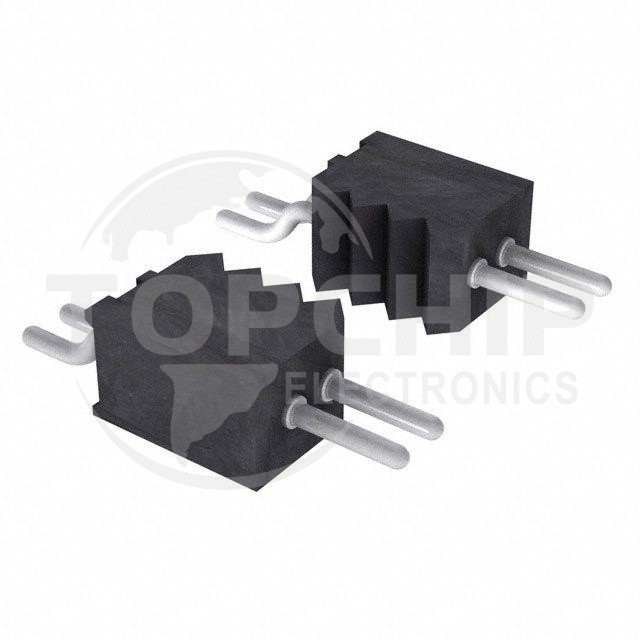

Image is for reference, please contact us to get the real picture

Series:860
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:33
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.086" (2.20mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.087" (2.20mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:150VDC
