852-40-016-20-001000

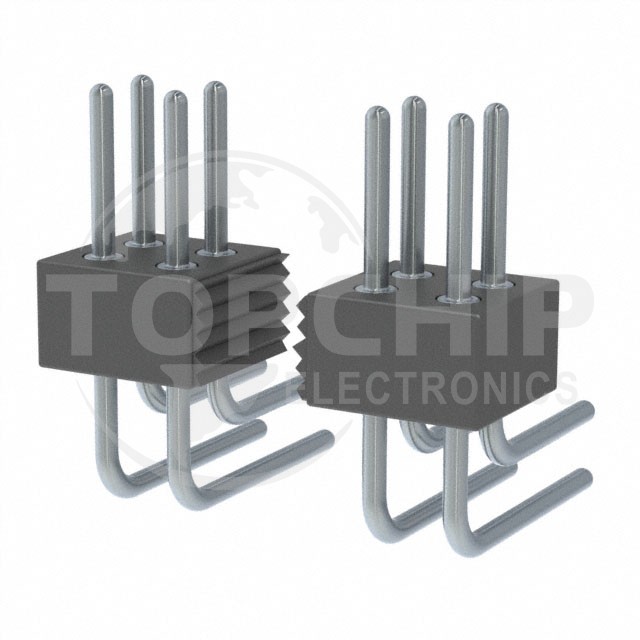

Image is for reference, please contact us to get the real picture

Manufacturer Part
852-40-016-20-001000
Manufacturer
Mill-Max
Description
CONN HEADER R/A 16POS 1.27MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
0
Datasheets
-

852-40-016-20-001000 Specifications

  • Series:852
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.118" (3.00mm)
  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:-
  • Insulation Height:0.120" (3.05mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass Alloy
  • Insulation Material:Polyamide (PA46), Nylon 4/6
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
