450-80-226-00-013101 In Stock | Preci-Dip 450-80-226-00-013101 |www.topchipelec.com

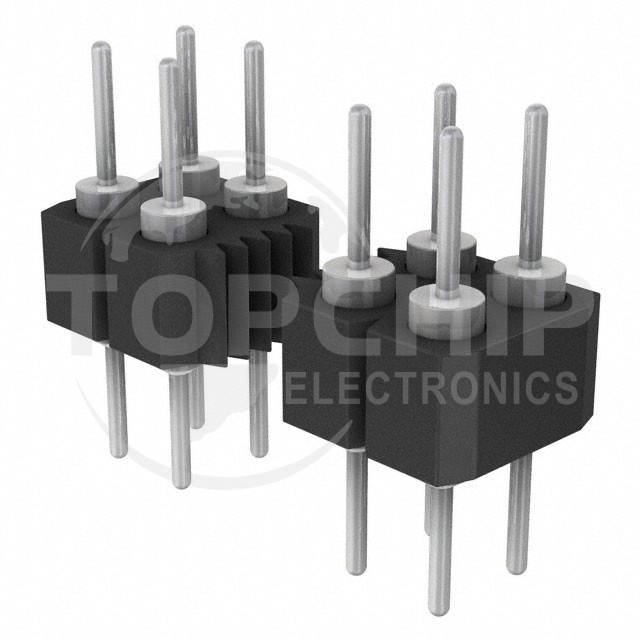

Image is for reference, please contact us to get the real picture

Series:450
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.134" (3.39mm)
Contact Length - Post:0.121" (3.08mm)
Overall Contact Length:0.416" (10.57mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:150VDC
