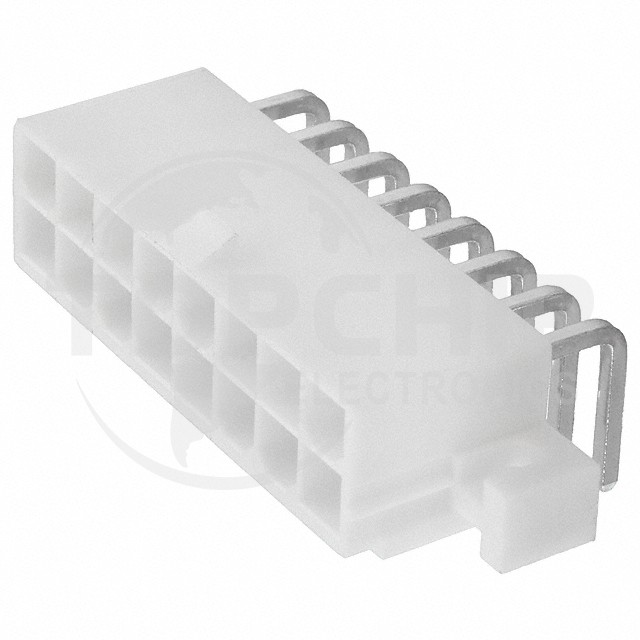

64901621022

Image is for reference, please contact us to get the real picture

Manufacturer Part
64901621022
Manufacturer
Wurth Elektronik Midcom
Description
CONN HEADER R/A 16POS 4.2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
0
Datasheets
-

64901621022 Specifications

  • Series:WR-MPC4
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.394" (10.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:Mounting Flange
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):6A
  • Voltage Rating:600V
