662020236022

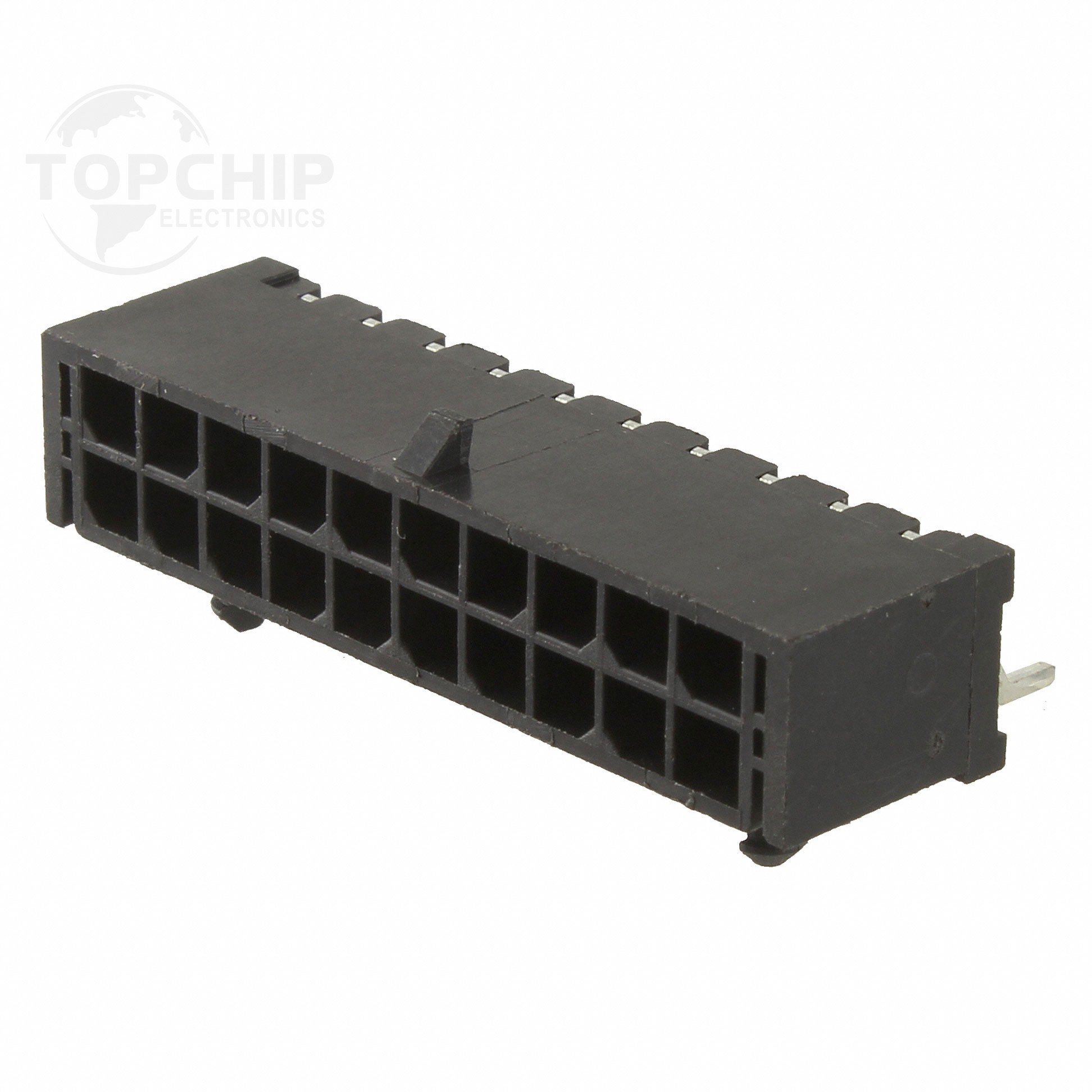

Image is for reference, please contact us to get the real picture

Manufacturer Part
662020236022
Manufacturer
Wurth Elektronik Midcom
Description
CONN HEADER SMD R/A 20POS 3MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
0
Datasheets
-

662020236022 Specifications

  • Series:WR-MPC3
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.290" (7.37mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):5A
  • Voltage Rating:250V
