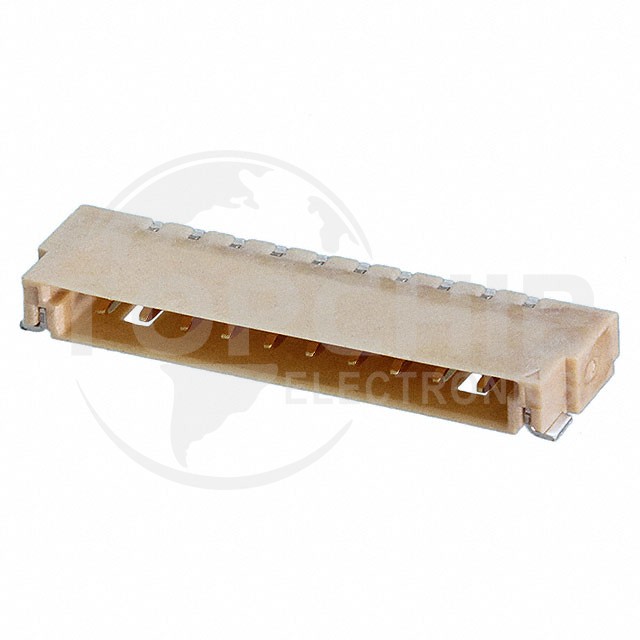

FI-S10P-HFE-E1500 Specifications

• Series:FI
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Receptacle
• Contact Type:Male Pin
• Pitch - Mating:0.049" (1.25mm)
• Number of Positions:10
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Surface Mount, Right Angle
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:-
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.071" (1.80mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin or Tin-Alloy
• Contact Material:Copper Alloy
• Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
• Features:Solder Retention
• Operating Temperature:-40°C ~ 80°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Beige
• Current Rating (Amps):1A per Contact
• Voltage Rating:200V
