805-83-069-10-005101

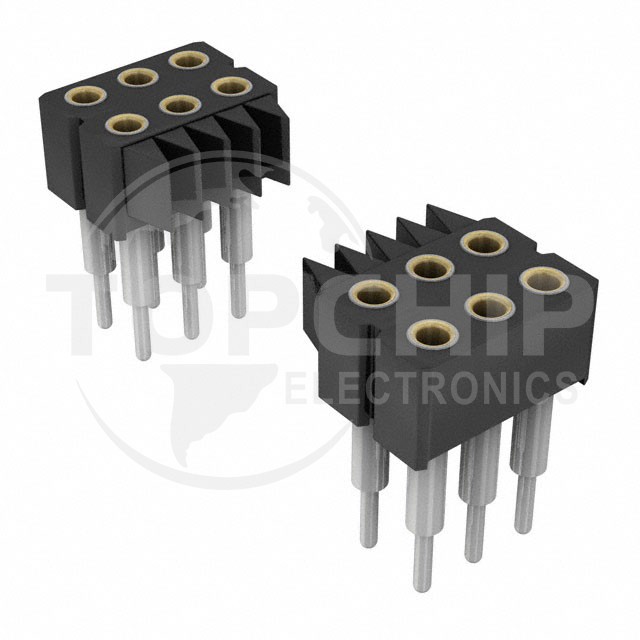

Image is for reference, please contact us to get the real picture

Manufacturer Part
805-83-069-10-005101
Manufacturer
Preci-Dip
Description
CONN SOCKET 59POS 0.1 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
0
Datasheets
-

805-83-069-10-005101 Specifications

  • Series:805
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:59
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:3
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Insulation Color:Black
  • Insulation Height:0.331" (8.40mm)
  • Contact Length - Post:0.116" (2.95mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-
