801-87-035-20-442101

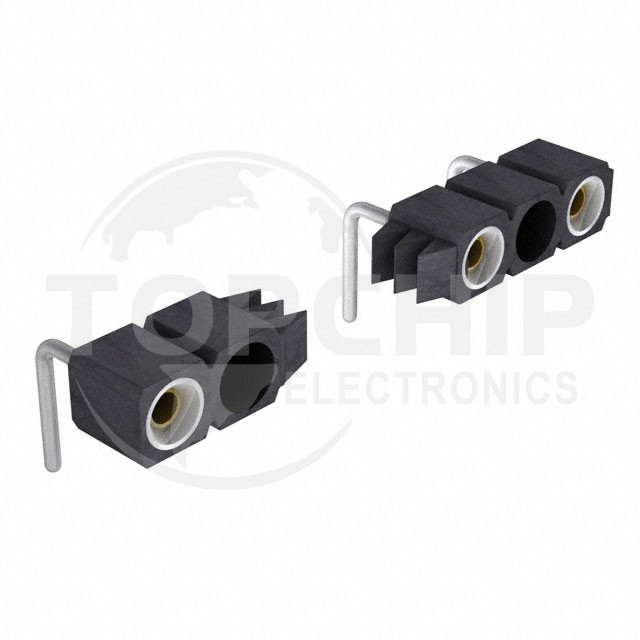

Image is for reference, please contact us to get the real picture

Manufacturer Part
801-87-035-20-442101
Manufacturer
Preci-Dip
Description
CONN SOCKET 18P 0.2 GOLD PCB R/A
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
0
Datasheets
-

801-87-035-20-442101 Specifications

  • Series:801
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:18
  • Number of Positions Loaded:All
  • Pitch - Mating:0.200" (5.08mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Insulation Color:Black
  • Insulation Height:0.100" (2.54mm)
  • Contact Length - Post:0.126" (3.20mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-
