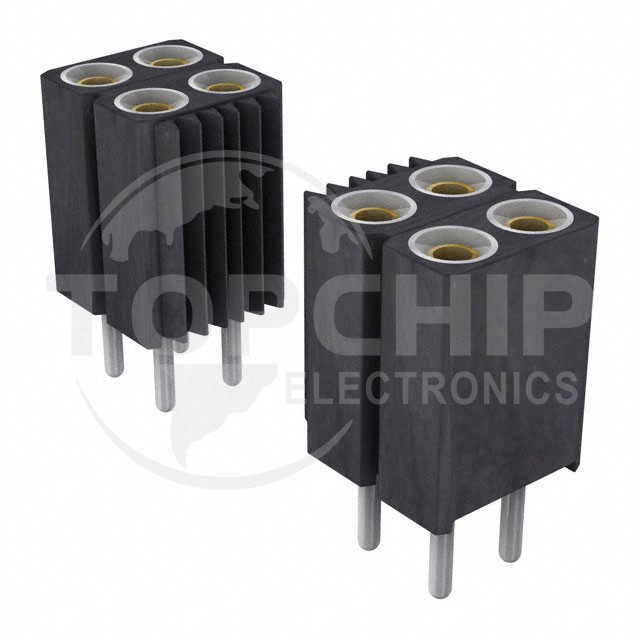

803-83-036-10-004101 Specifications

• Series:803
• Package:Bulk
• Part Status:Active
• Connector Type:Socket
• Contact Type:Female Socket
• Style:Board to Board
• Number of Positions:36
• Number of Positions Loaded:All
• Pitch - Mating:0.100" (2.54mm)
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:29.5µin (0.75µm)
• Insulation Color:Black
• Insulation Height:0.276" (7.00mm)
• Contact Length - Post:0.114" (2.90mm)
• Operating Temperature:-55°C ~ 125°C
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Tin
• Mated Stacking Heights:-
• Ingress Protection:-
• Features:-
• Current Rating (Amps):3A
• Voltage Rating:-
