1-532956-2

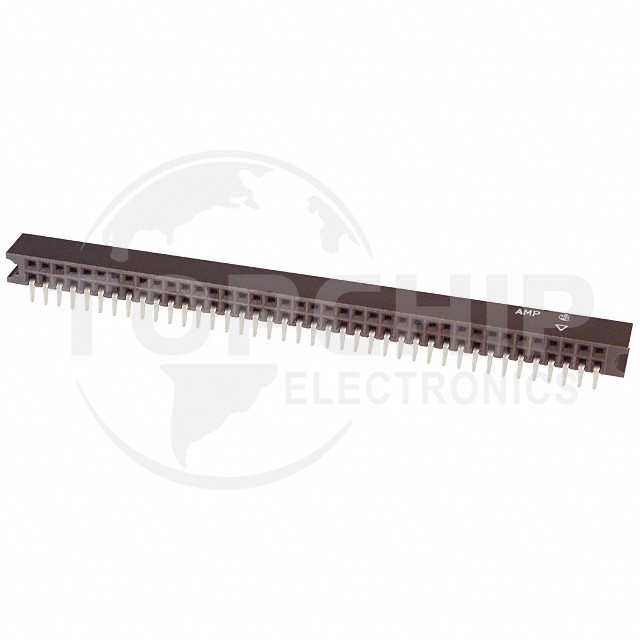

Image is for reference, please contact us to get the real picture

Manufacturer Part
1-532956-2
Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 80POS 0.1 GOLD PCB R/A
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
0
Datasheets
-

1-532956-2 Specifications

  • Series:AMPMODU Mod II
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:80
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.238" (6.05mm)
  • Contact Length - Post:0.115" (2.92mm)
  • Operating Temperature:-
  • Material Flammability Rating:-
  • Contact Finish - Post:Tin-Lead
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Guide Pin Ears
  • Current Rating (Amps):-
  • Voltage Rating:-
