2043-A2X08G10DPT-H3.5-M

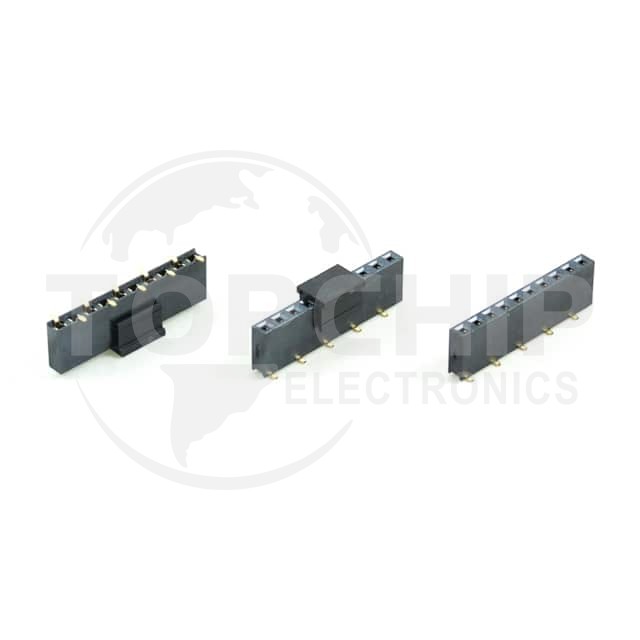

Image is for reference, please contact us to get the real picture

Manufacturer Part
2043-A2X08G10DPT-H3.5-M
Manufacturer
Oupiin
Description
PCB SOCKET, A SERIES, DOUBLE ROW
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
0
Datasheets
-

2043-A2X08G10DPT-H3.5-M Specifications

  • Series:2043
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Receptacle, Bottom or Top Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:16
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Insulation Color:-
  • Insulation Height:0.138" (3.50mm)
  • Contact Length - Post:-
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Guide, Pick and Place
  • Current Rating (Amps):3A
  • Voltage Rating:-
