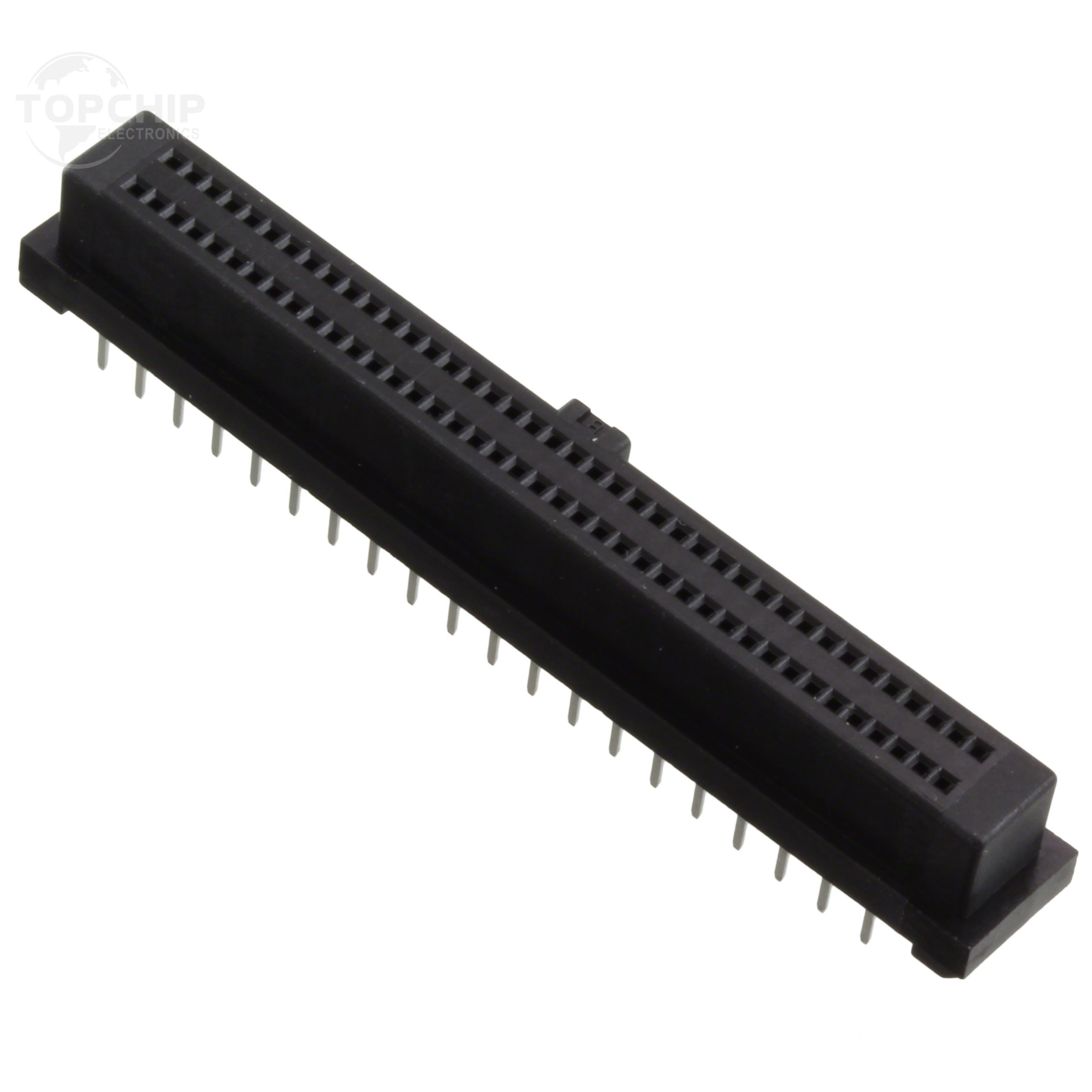

HIF6A-80DA-1.27DSA(71) Specifications

• Series:HIF6
• Package:Tray
• Part Status:Active
• Connector Type:Receptacle
• Contact Type:Female Socket
• Style:Board to Board or Cable
• Number of Positions:80
• Number of Positions Loaded:All
• Pitch - Mating:0.050" (1.27mm)
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:8.00µin (0.203µm)
• Insulation Color:Black
• Insulation Height:0.346" (8.80mm)
• Contact Length - Post:0.118" (3.00mm)
• Operating Temperature:-55°C ~ 85°C
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Tin
• Mated Stacking Heights:14.8mm
• Ingress Protection:-
• Features:Polarizing Key
• Current Rating (Amps):0.5A
• Voltage Rating:125VAC
