XW4M-28D2-H1DS

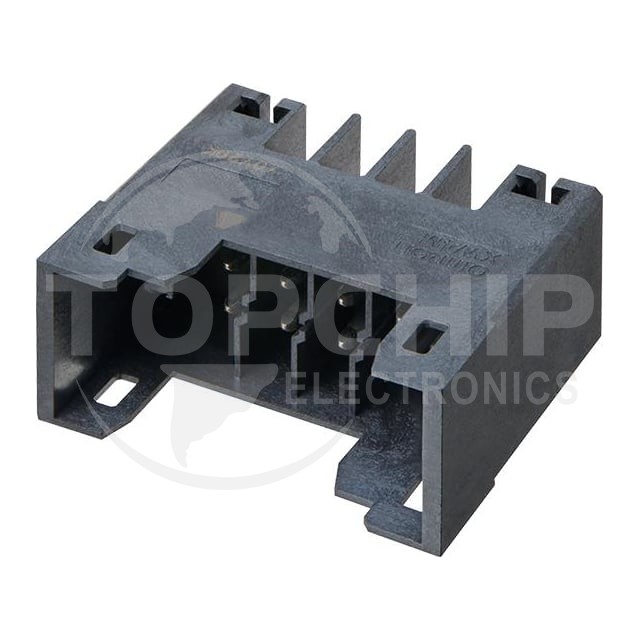

Image is for reference, please contact us to get the real picture

Manufacturer Part
XW4M-28D2-H1DS
Manufacturer
Omron Electronics Components
Description
PLUG,DOUBLE-ROW,RIGHT-ANGLE,TIN
Category
Connectors, Interconnects
Family
Terminal Blocks - Headers, Plugs and Sockets
Series
-
In Stock
0
Datasheets
-

XW4M-28D2-H1DS Specifications

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Type:Header, Male Pins, Shrouded (4 Side)
  • Number of Positions:28
  • Positions Per Level:14
  • Number of Levels:2
  • Pitch:0.138" (3.50mm)
  • Header Orientation:90°, Right Angle
  • Plug Wire Entry:-
  • Termination Style:Solder
  • Mounting Type:Through Hole
  • Current - IEC:8A
  • Voltage - IEC:160 A
  • Current - UL:8 V
  • Voltage - UL:300 V
  • Wire Gauge or Range - AWG:-
  • Wire Gauge or Range - mm²:-
  • Color:Black
  • Operating Temperature:-40°C ~ 100°C
  • Contact Mating Finish:Tin
  • Features:Latches
