XW4N-20D2-A

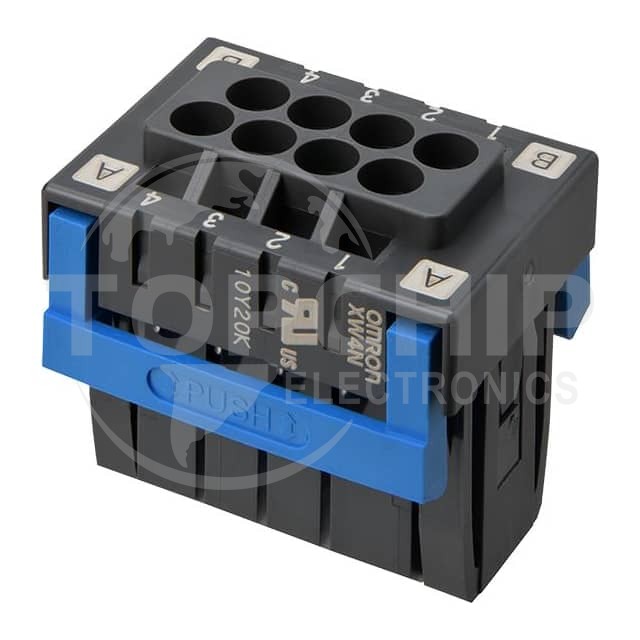

Image is for reference, please contact us to get the real picture

Manufacturer Part
XW4N-20D2-A
Manufacturer
Omron Electronics Components
Description
SOCKET,DOUBLE-ROW,,GOLD,
Category
Connectors, Interconnects
Family
Terminal Blocks - Headers, Plugs and Sockets
Series
-
In Stock
0
Datasheets
-

XW4N-20D2-A Specifications

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Type:Plug, Female Sockets
  • Number of Positions:20
  • Positions Per Level:10
  • Number of Levels:2
  • Pitch:0.138" (3.50mm)
  • Header Orientation:-
  • Plug Wire Entry:180°
  • Termination Style:Screwless - Leg Spring, Push-In Spring
  • Mounting Type:Free Hanging (In-Line)
  • Current - IEC:8A
  • Voltage - IEC:160 A
  • Current - UL:8 V
  • Voltage - UL:300 V
  • Wire Gauge or Range - AWG:16-24 AWG
  • Wire Gauge or Range - mm²:0.2-1.5mm²
  • Color:Black
  • Operating Temperature:-40°C ~ 100°C
  • Contact Mating Finish:Gold
  • Features:Lever Actuated
