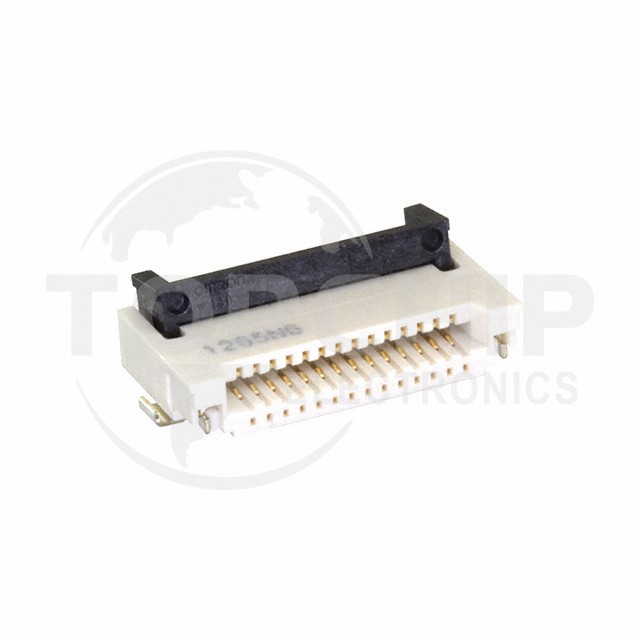

XF3M(1)-1415-1B Specifications

• Series:XF3M
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Flat Flex Type:FFC, FPC
• Mounting Type:Surface Mount, Right Angle
• Connector/Contact Type:Contacts, Top and Bottom
• Number of Positions:14
• Pitch:0.039" (1.00mm)
• Termination:Solder
• FFC, FCB Thickness:0.30mm
• Height Above Board:0.079" (2.00mm)
• Locking Feature:Rotary Lock, Backlock
• Cable End Type:Tapered
• Contact Material:Copper Alloy
• Contact Finish:Gold
• Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
• Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
• Features:Solder Retention
• Voltage Rating:50V
• Operating Temperature:-30°C ~ 85°C
• Material Flammability Rating:UL94 V-0
